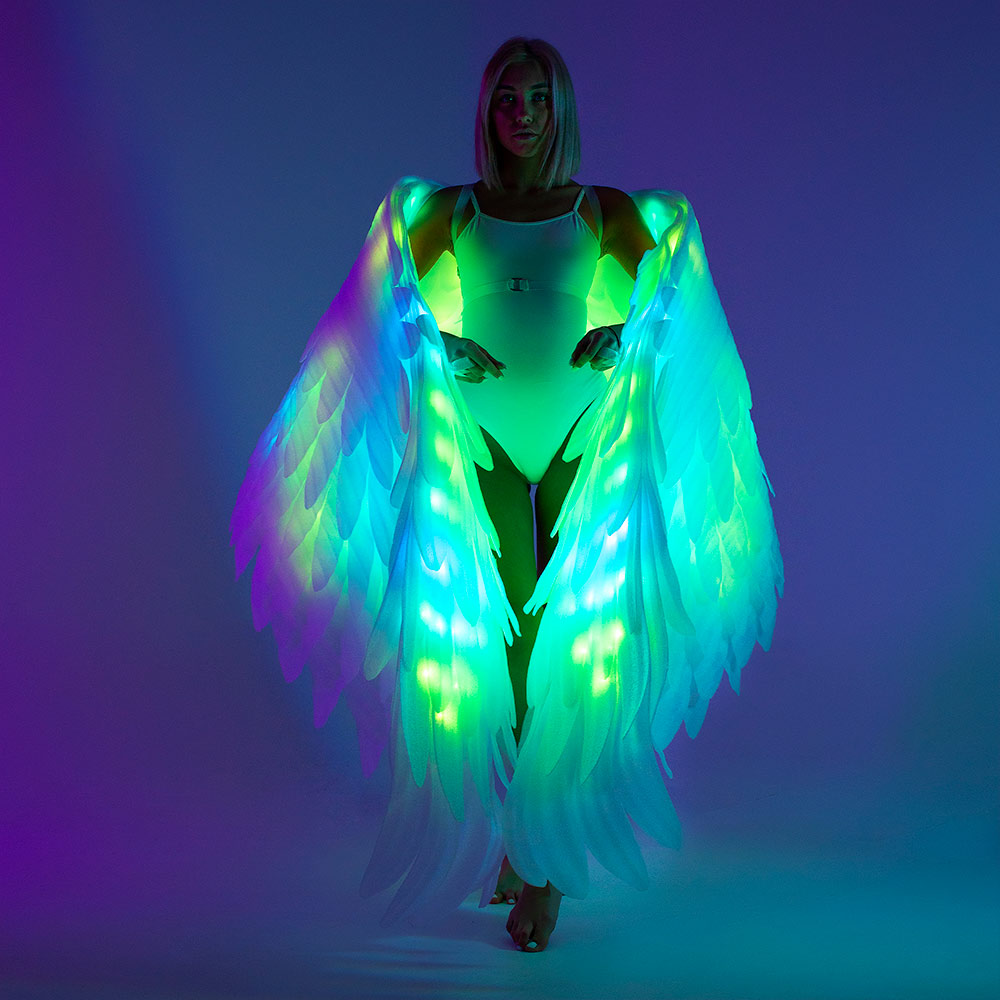

How to assemble Smart Pixel Fairy Cosplay Angel Wings with 200 LEDs by ETERESHOP O11
This manual will tell you how to assemble and work with Smart Pixel Fairy Cosplay Angel Wings with 200 LEDs by ETERESHOP O11
To work with the wings, you need to purchase 18650 batteries
Flat-top batteries are recommended, but not required. Make sure the battery is 65 mm long, some batteries may be 2-3 mm longer, and you will not be able to insert the batteries into the holders.
Voltage: 3.7 Volts
Current: Rated current not less than 10 Amperes! This parameter is the most important! Do not buy batteries designed for flashlights, especially if the current is not indicated on the box.
Recommended capacity: 2500 - 3800 mAh. 3800 mAh is the maximum capacity of this type of battery. If you see 4000 - 9000 mAh — consider that this is a fake capacity.
Recommended capacity: 2500 - 3800 mAh. 3800 mAh is the maximum capacity of this type of battery. If you see 4000 - 9000 mAh — consider that this is a fake capacity.
Where to buy: This type of battery can definitely be purchased in a vape shop, it is better to purchase batteries from well-known brands. Such as: Samsung, LG or Sony
Examples of suitable batteries:
Also, when buying any battery, do not forget to purchase a specialized charger for it. Examples of chargers are shown below:
In order to assemble the wings, insert the battery into the battery box. Be careful not to reverse the polarity.
You can read more about how to insert batteries at this link:
How to insert batteries type 18650 properly?
You can read more about how to insert batteries at this link:
How to insert batteries type 18650 properly?
After that, you need to connect the controller (the part with the buttons) to the corresponding connector on the wings.
In the photo the controller is black, but yours will be white
Then connect the battery box, the LED on the controller will light up in blue. After that, press any button on the controller to turn on the effects. One button switches the effects forward and the other backward.
To turn off the effects, you need to hold any button for 3 seconds, then release it and the effect will stop.
In the photo the controller is black, but yours will be white
Then connect the battery box, the LED on the controller will light up in blue. After that, press any button on the controller to turn on the effects. One button switches the effects forward and the other backward.
To turn off the effects, you need to hold any button for 3 seconds, then release it and the effect will stop.
At the end of working with the wings, disconnect the battery box. The battery can not be removed.
To charge the battery, you can use a specialized charger, or charge the battery using an adapter from the repair kit (this is a package with spare parts):
To charge the battery, you can use a specialized charger, or charge the battery using an adapter from the repair kit (this is a package with spare parts):
To charge the battery, connect the battery box to the adapter. And connect the adapter via micro USB cable to the charger from your mobile phone.
During charging, the LED on the adapter will glow red, and when charging is complete, it will turn blue. The adapter may get warm while charging, don't worry, this is normal.
On the controller (the part with the buttons) you will also find a micro USB, it serves for configuration and does not need to be charged!
