How to assemble Smart LED Bellydance Rainbow wings – 500 LEDs by ETERESHOP B05

This manual will tell you how to assemble and work with Smart LED Bellydance Rainbow wings – 500 LEDs by ETERESHOP B05

To work with the wings, you need to purchase  18650 batteries

Flat-top batteries are recommended, but not required. Make sure the battery is 65 mm long, some batteries may be 2-3 mm longer, and you will not be able to insert the batteries into the holders.

Voltage: 3.7 Volts

Current: Rated current not less than 10 Amperes! This parameter is the most important! Do not buy batteries designed for flashlights, especially if the current is not indicated on the box.
Recommended capacity: 2500 - 3800 mAh. 3800 mAh is the maximum capacity of this type of battery. If you see 4000 - 9000 mAh — this is a fake capacity.

Where to buy:  This type of battery can definitely be purchased in a vape shop, it is better to purchase batteries from well-known brands. Such as: Samsung, LG or Sony

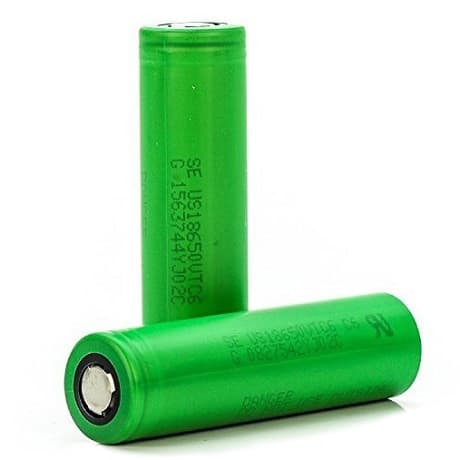

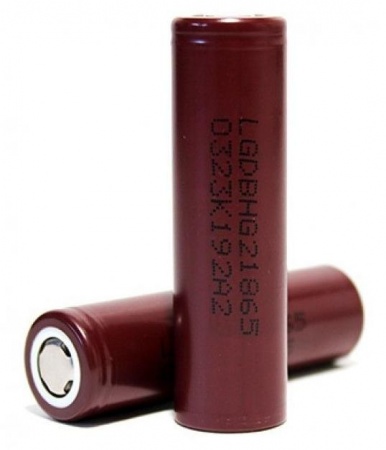

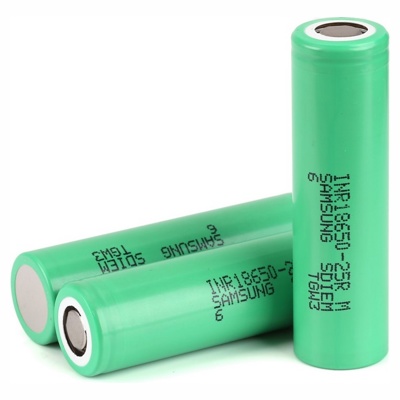

Examples of suitable batteries:

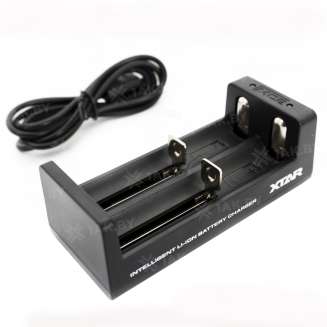

Also, when buying any battery, do not forget to purchase a specialized charger for it. Examples of chargers are shown below:

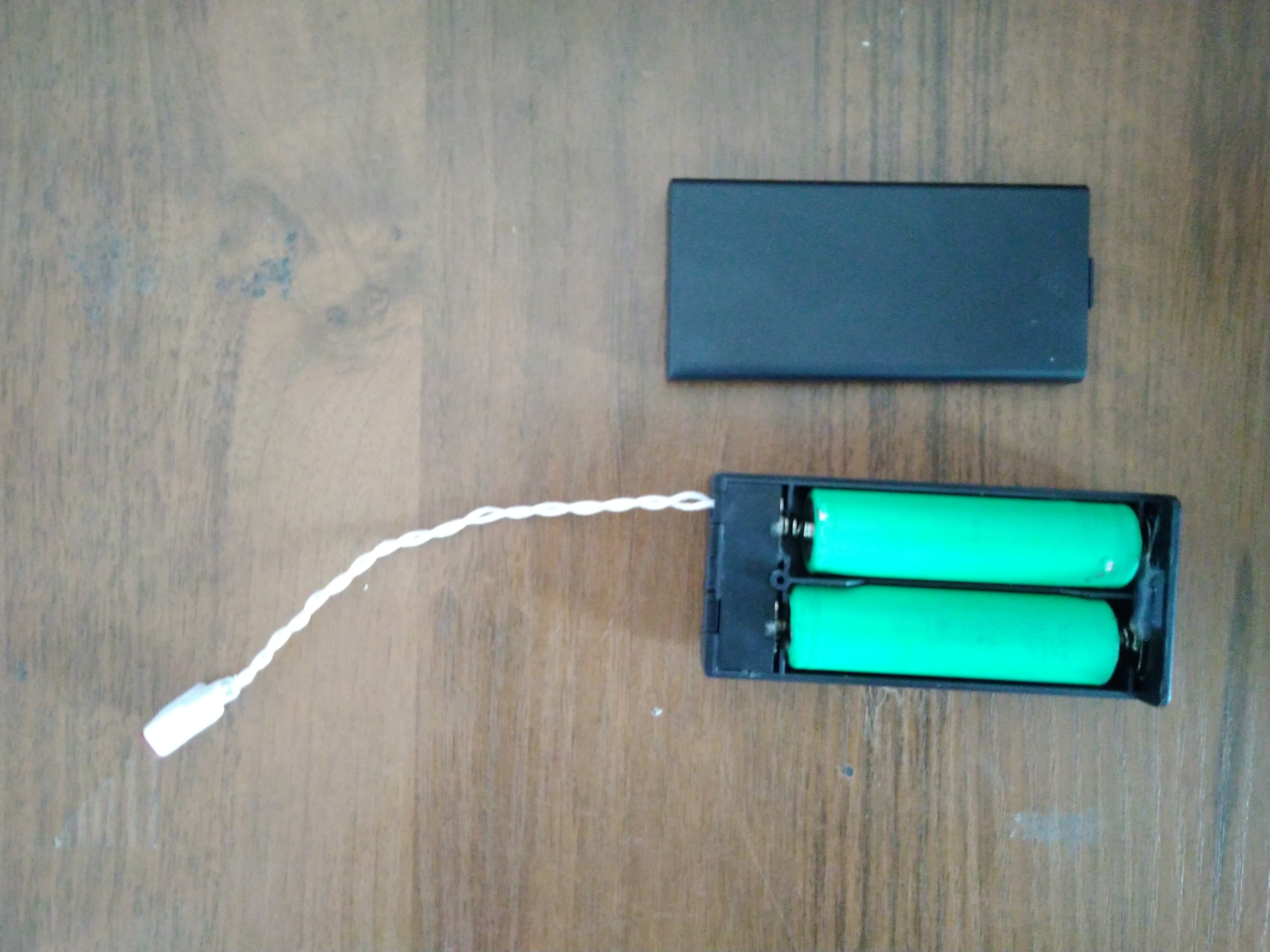

In order to assemble the wings, insert the battery into the battery box, and close it with a lid. Be careful not to reverse the polarity.

You can read more about how to insert batteries at this link:
How to insert batteries type 18650 properly?

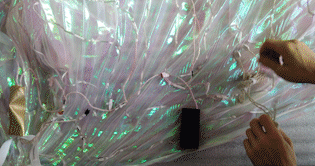

After that, you need to connect the controller (the part with the buttons) to the corresponding connector on the wings.

In the photo the controller is black, but yours will be white

Then connect the battery box, the LED on the controller will light up in blue. After that, press any button on the controller to turn on the effects. One button switches the effects forward and the other backward.
On the GIF below you can see the work of the wings after connection:



To turn off the effects, you need to hold any button for 3 seconds, then release it and the effect will stop.

At the end of working with the wings, disconnect the battery box. The battery may not be removed.

Charge batteries after usage:

Batteries can be charged with a specialized charger purchased with the batteries.

Or with the Imax B6 charger. Charging instructions can be found here:
How to charge 18650 type batteries with Imax B6 charger or similar?
