How to assemble Smart LED Rainbow Screen Mask

This manual will tell you how to assemble and work with Smart LED Rainbow Screen Mask

To work with the Ballet tutu, you need to purchase 18650 batteries

Flat-top batteries are recommended, but not required. Make sure the battery is 65 mm long, some batteries may be 2-3 mm longer, and you will not be able to insert the batteries into the holders.

Voltage: 3.7 Volts

Current: Rated current not less than 10 Amperes! This parameter is the most important! Do not buy batteries designed for flashlights, especially if the current is not indicated on the box.
Recommended capacity: 2500 - 3800 mAh. 3800 mAh is the maximum capacity of this type of battery. If you see 4000 - 9000 mAh — consider that this is a fake capacity.

Where to buy:  This type of battery can definitely be purchased in a vape shop, it is better to purchase batteries from well-known brands. Such as: Samsung, LG or Sony

Examples of suitable batteries:

Also, when buying any battery, do not forget to purchase a specialized charger for it. Examples of chargers are shown below:

After you have purchased the necessary batteries, you can start assembling. One mask needs four 18650 batteries.

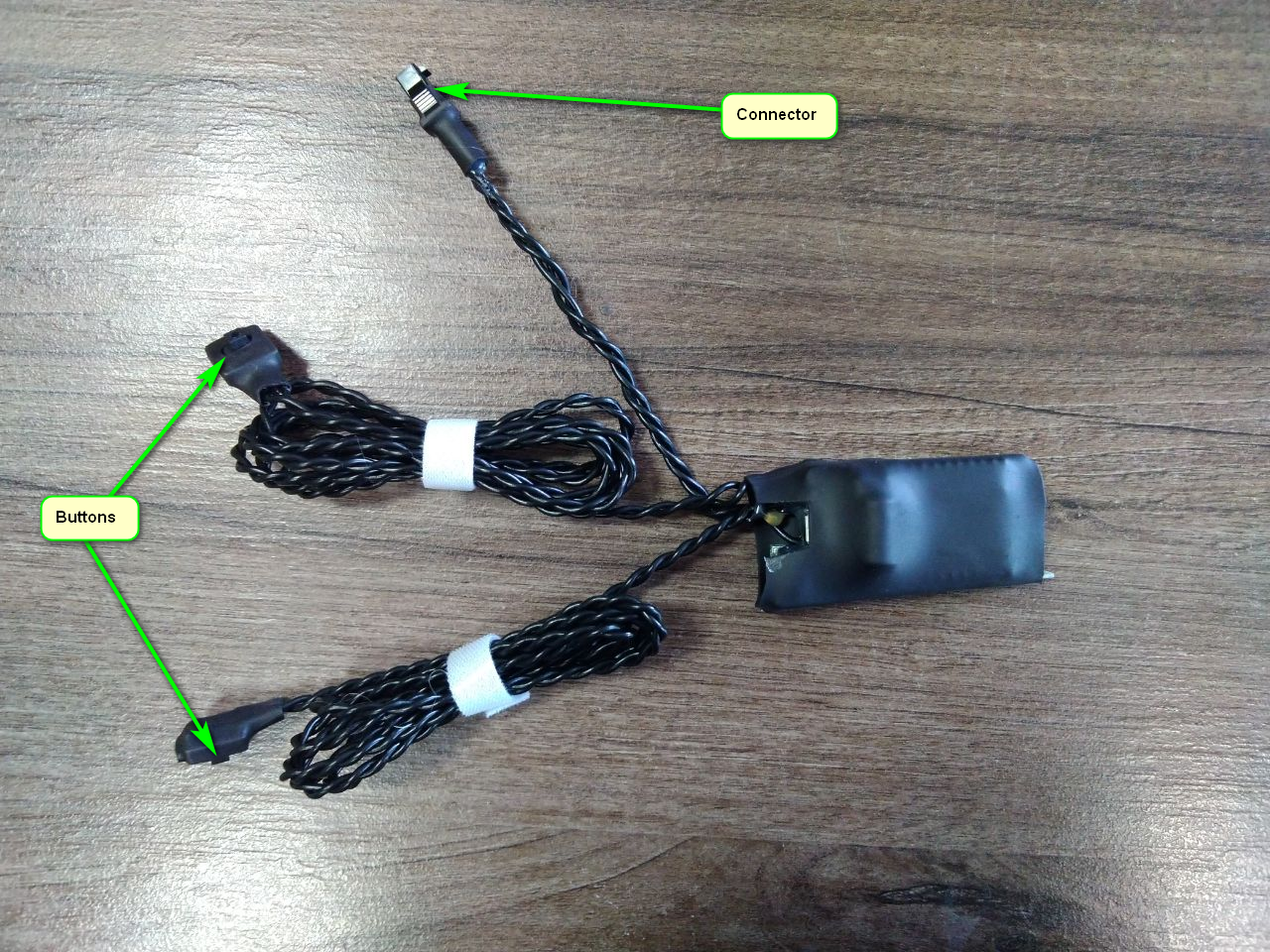

1) Connect the controller to the mask

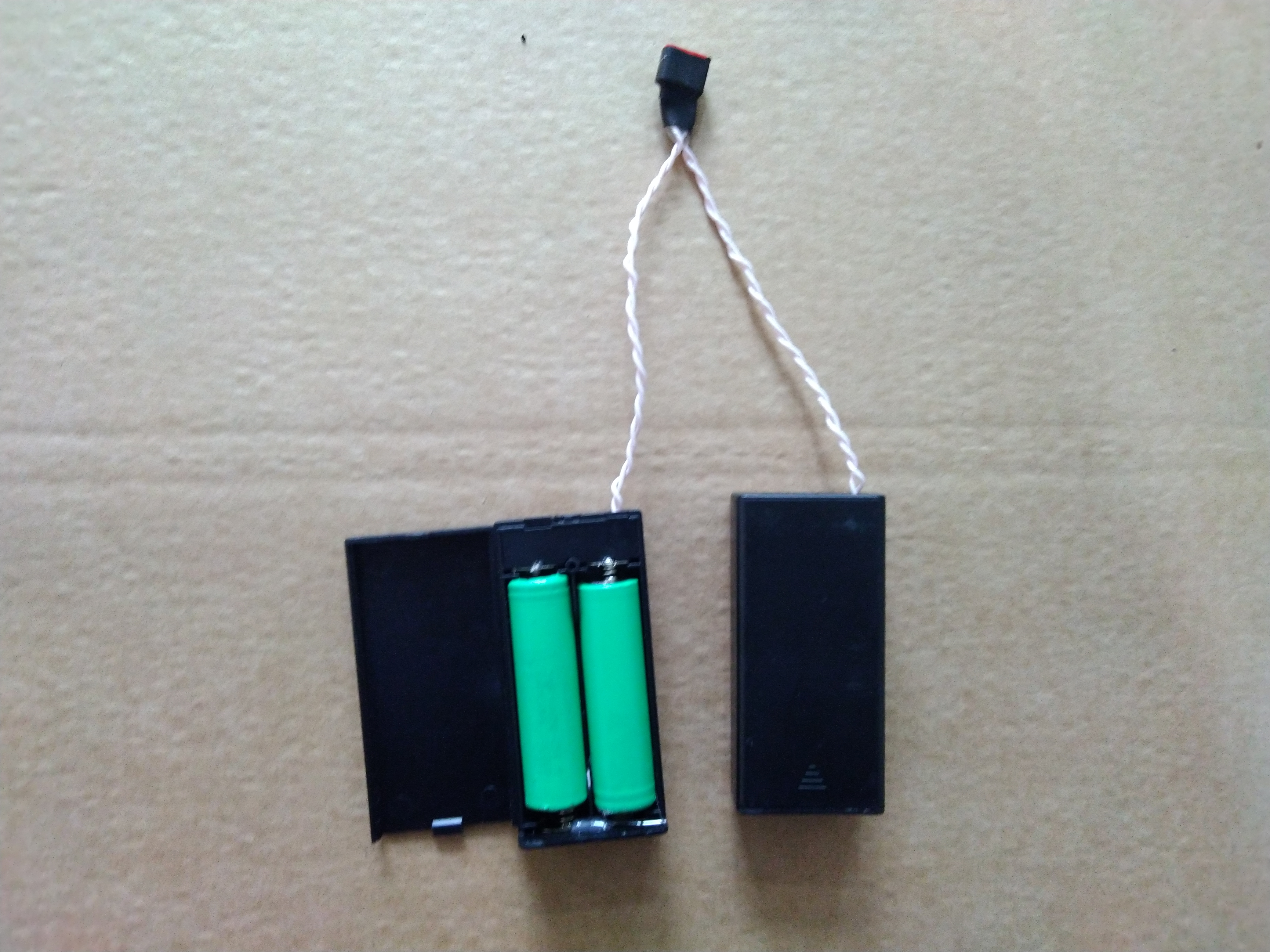

2) Insert 18650 type batteries into battery boxes, be careful not to reverse the polarity

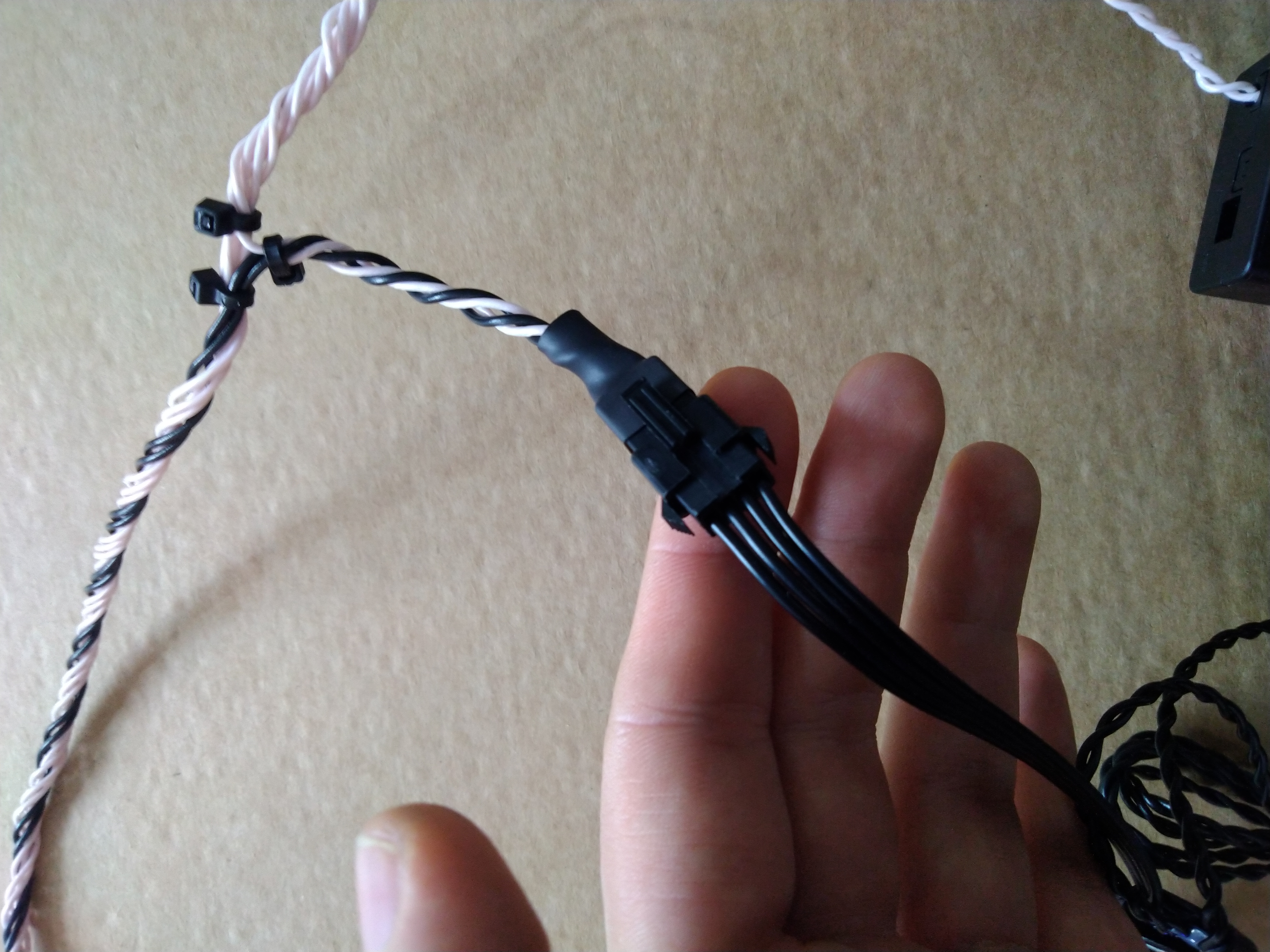

3) Connect battery boxes to mask

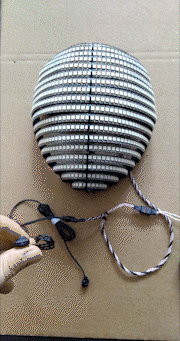

Then connect the battery box, the LED on the controller will light up in blue

 After that, press any button on the controller to turn on the effects. One button switches the effects forward and the other backward.

To turn off the effects, you need to hold any button for 3 seconds, then release it and the effect will stop.

At the end of working with the wings, disconnect the battery box. The battery can not be removed.

To charge the battery, you can use a specialized charger or Imax B6.
Here is the instruction on how to use it:
How to charge 18650 type batteries with Imax B6 charger or similar?

On the controller (the part with the buttons) you will also find a micro USB, it serves for configuration and does not need to be charged!
